Crystalline Fructose Project Introduction

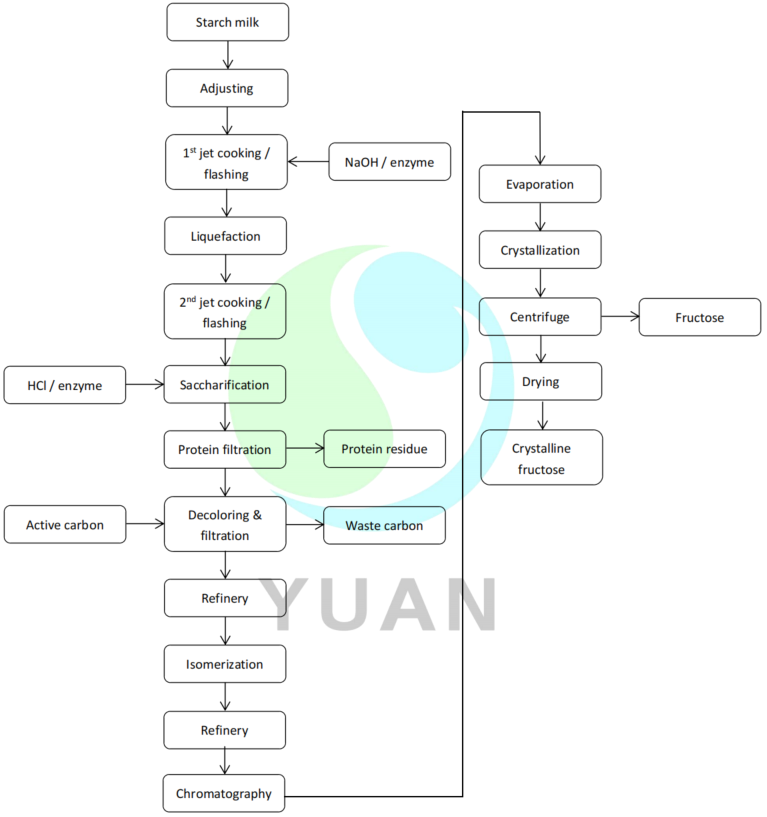

The commercial starch is sent to the dissolving tank and dissolved by adding water. Then, enters the slurry mixing tank, through online detection and control, adjust the DS, PH value and enzyme amount of the starch milk, and then enters the automatic liquefaction system. Adopt two times ejection, twice flashing, maintain the appropriate temp. and a certain time, to ensure the best liquefaction effect. After liquefaction, through PH adjustment and enzyme addition, the syrup is sent to the saccharification system. By controlling the amount of enzyme and saccharification time, the DE or DX value required by the final product is reached, and the glucose enters the filtration stage to remove the less protein and other impurities mixed in the product. After filtration, the liquid glucose goes through decoloring, filtering and continuous ion exchange system to remove the colored impurities and impurity ions of the glucose, so that the glucose can achieve the purpose of refining and purification. After evaporation, the glucose enters the isomerization system to get the fructose 42%. Through the refinery and evaporation, F42 enters the chromatography system to get the high fructose. After evaporation, the high fructose enters the crystallization system. Then through the centrifugal separation and drying, the qualified crystalline fructose product will be obtained.
